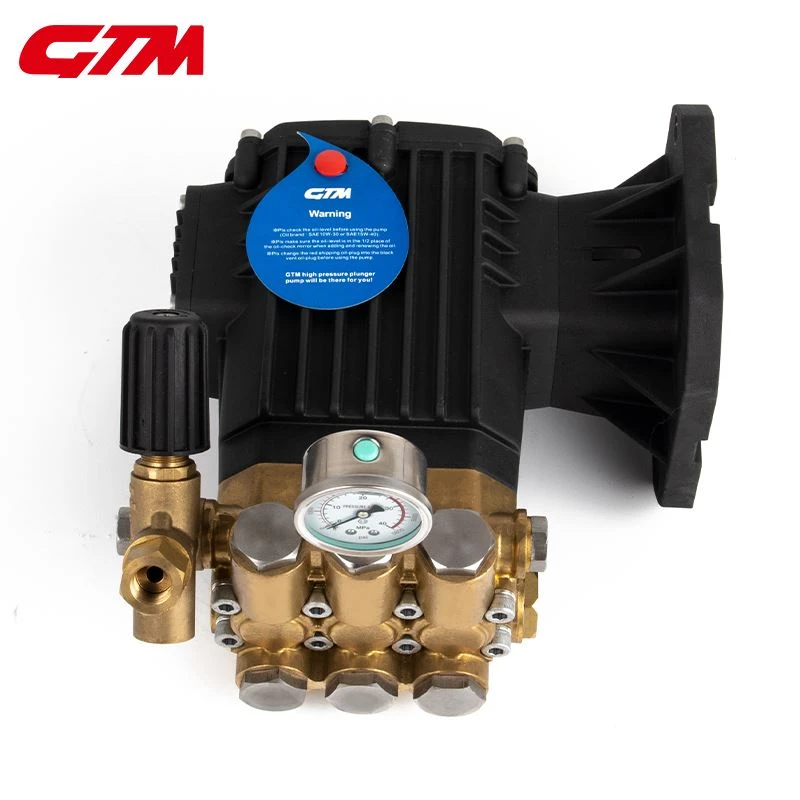

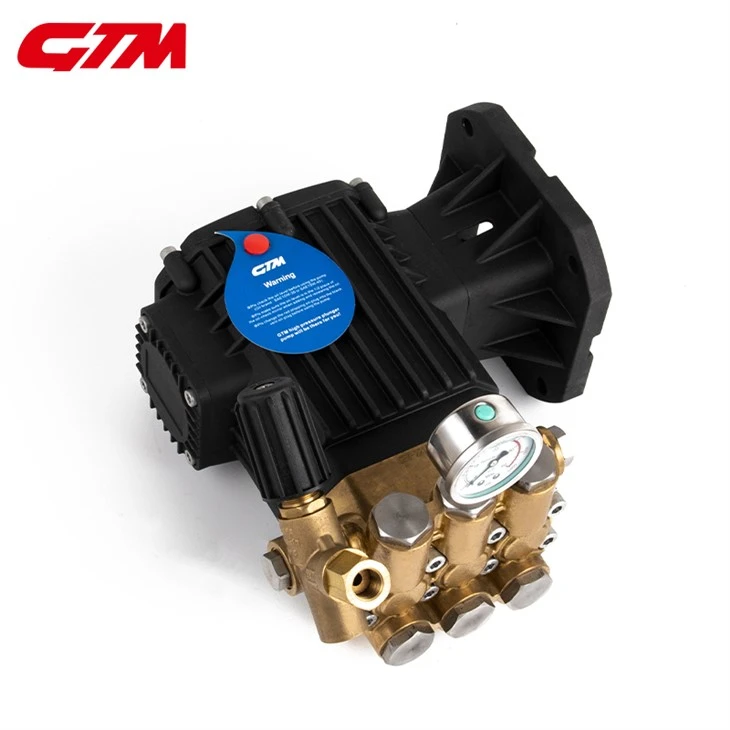

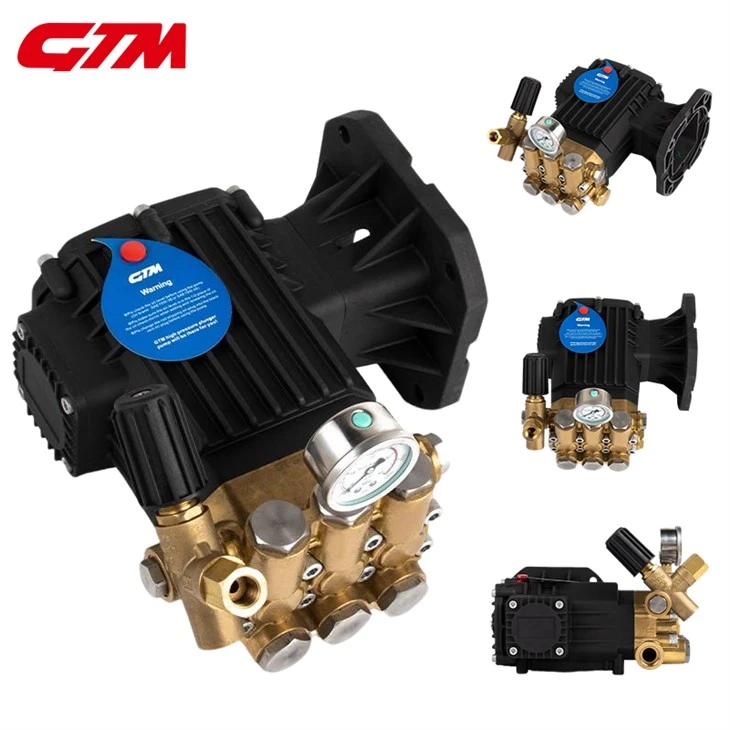

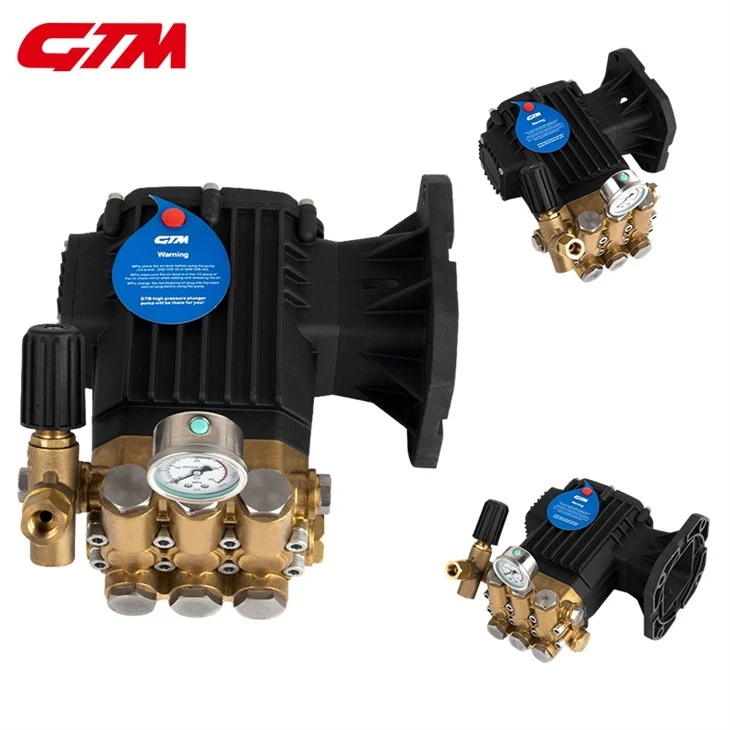

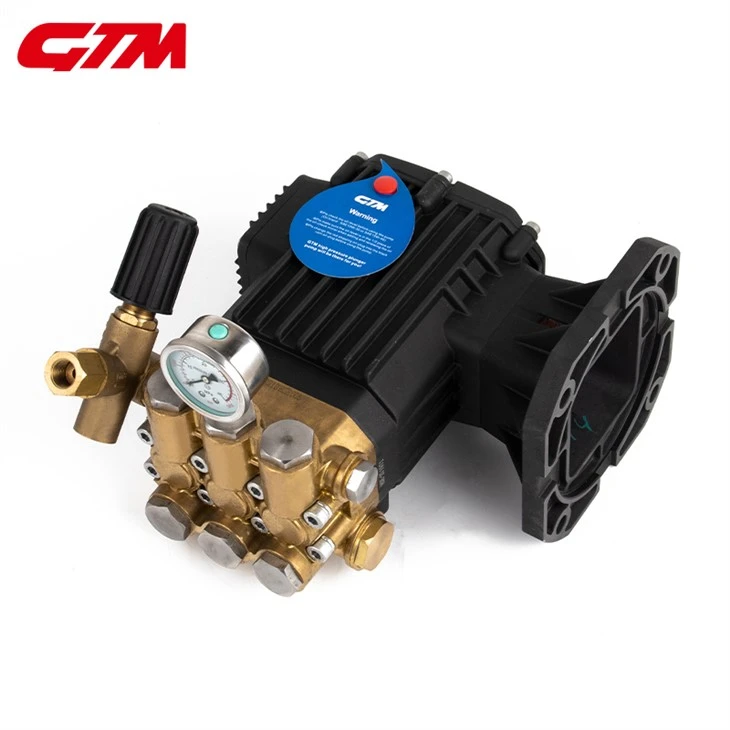

Robust and Portable High-Pressure Spraying SolutionDo you want to get to the heart of a robust and trustworthy sprayer? The GTM Pump Power Sprayer Plunger Pump gives the exact high pressure flow for all kinds of spraying and jetting applications. Durable and powerful engineered, this pump is the perfect center part of agricultural spraying machines, pest control machines, industrial cleaning and disinfection equipment. The Power Sprayer Plunger Pump that we design has a function of dealing with many different fluid, such as water, fertilizer and a bit of medicine. Its positive displacement design gives it good control over how much it flows and maintains steady pressure as well, which lets it make even patterns when spraying water and cover things better. Built with corrosion resistant material. It can stay on working places and industrial environment easily.
Specification
|
Model |
Flow |
Pressure |
Power |
Weight |
Rev |
Inlet |
Outlet |
|||
|
L/min |
gpm |
Mpa |
Psi |
hp |
kw |
kg |
rpm |
Inlet |
outlet |
|
|
GPW-2821GA |
54 |
14.8 |
15 |
2200 |
22 |
16 |
23 |
3400 |
G3/4" |
G3/8" M22 |
|
GPK-2218GA |
33 |
8.5 |
13 |
2000 |
13 |
9 |
15 |
3400 |
G3/4" |
|
|
GPK-2214GA |
24 |
6.3 |
19 |
2750 |
13 |
9 |
15 |
3400 |
G3/4" |
|
Core Advantages & Features
High-Pressure Spraying Performance
The highest pressure will be created to spray for a long distance. The pressure reaches deep into the wound. The surface is cleaned thoroughly.
01
Chemical & Abrasive Fluid Compatibility
Made from stuff like steel and a coating on plunger made of ceramic so it holds up to fertilizer, pesticide and cleaner.
02
Portable & Integrated Design
Compact and sturdy this plunger pump can be fitted easily into a skid mounted unit, trailer sprayer, or trucks mounted system for maximum mobility.
03
Consistent Flow & Pressure
Whether you are working the spray gun or not, it gets the job done every time for a steady output.
04
Easy Maintenance
Simple servicability in areas that has an easy access of valves and seals and less downtime.
05
Typical Applications
Agricultural Spraying
Fertilizer, herbicide and pesticide for crop.
Industrial & Municipal Disinfection
To spray disinfectants on all the big outside ranges or building.
Pest Control & Weed Management
As a professional pest control spraying equipment's power unit.
Industrial Parts Cleaning
Installed in spray wash cabinets and cleaning systems.
Choose GTM Pump's Power Sprayer Plunger Pump for distance.
